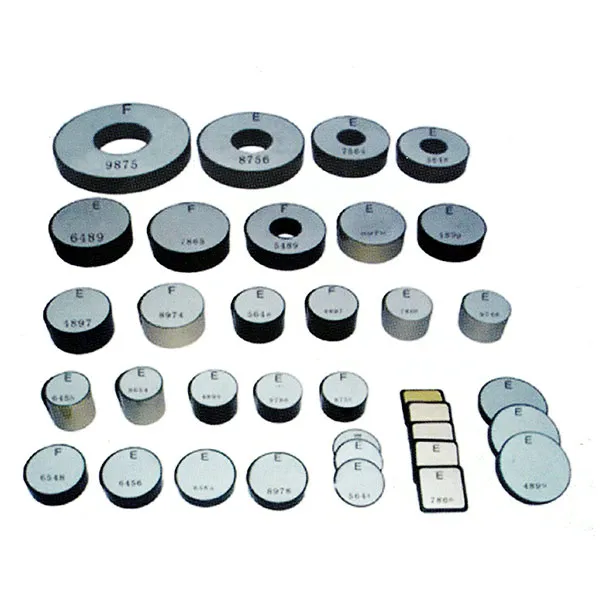

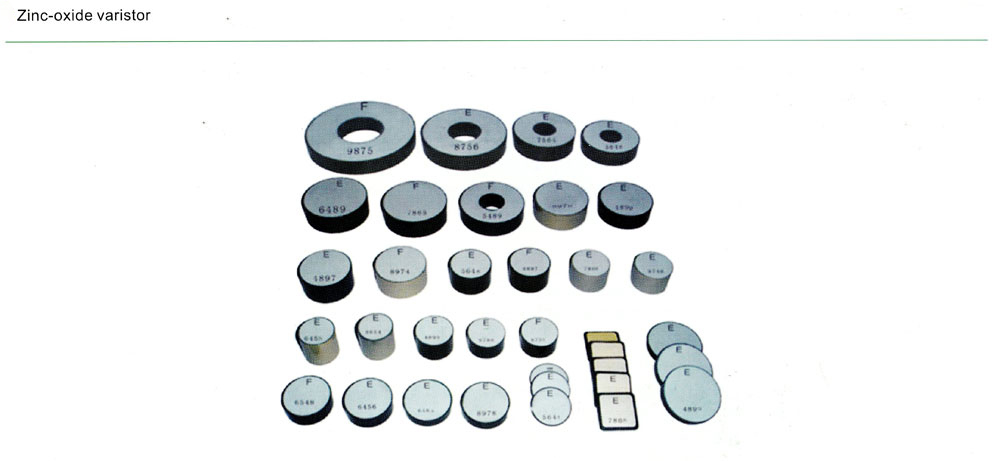

Zinc Oxide Resistor

Enhance your electronics with Zinc Oxide Resistors—designed for superior surge protection, voltage stabilization, and high-energy absorption in industrial, automotive, and renewable energy systems. Built to withstand extreme conditions, these RoHS-compliant resistors ensure durable, eco-friendly circuit protection with minimal leakage current. Trusted for precision and reliability in telecom, power supplies, and harsh environments.

Price：

￥0.00
Category：

Lightning Arrester
Browse number：

29
Release time：

2024-10-22 03:50:04
Quantity： - +
Share：

INQUIRY

Detailed Description

Type		D35	D38	D42	D52
Dimension(mm)	diameter	?35±0.5	?38±0.5	?42±0.5	?52±0.5
Dimension(mm)	height	24±0.5	24±0.5	24±0.5	24±0.5
Nominal discharge current(KA)		5	10	10	10
Rated voltage(KV)		3-3.4	3-3.4	3-3.4	3-3.4
MCOV(KV)		2.55	2.55	2.55	2.55
Residual voltage under 8/20μs lightning impulse		9.1	9.2	9.3	9.9
200/μs square wave impulse current withstand(A)		100	150	250	400
4/10μs high current impulse(KA)		65	100	100	100
Line discharge class		-	-	-	-
