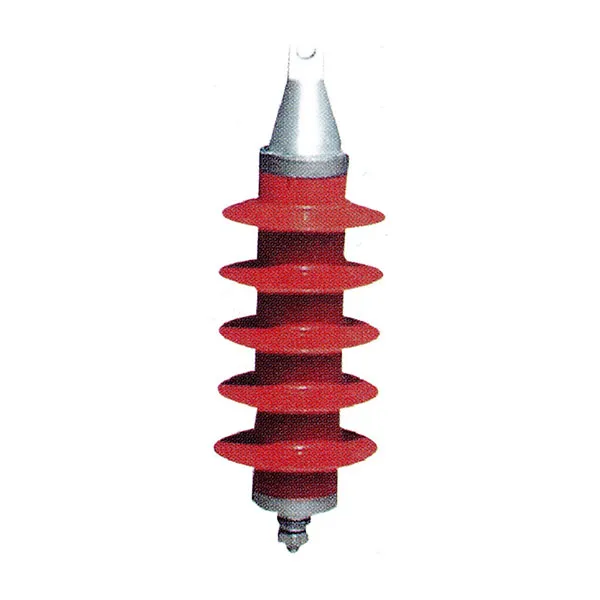

YH5WX-17/50

Enhance surge protection for your 35kV power systems with the YH5WX-17/50 Gapless Line-Type Lightning Arrester. Engineered with zinc oxide (ZnO) varistors and a durable polymer housing, this arrester reduces lightning-induced tripping rates by 60%+ while clamping overvoltages in microseconds. Compliant with GB 11032-2000 (IEC 60099-4) and JB/T 8952-2005, it is designed for suspension-type (tower-mounted) or stake-type installations in harsh environments like mines, coastal grids, and mountainous regions.

Price：

￥0.00
Category：

Lightning Arrester
Browse number：

29
Release time：

2024-10-22 01:55:45
Quantity： - +
Share：

INQUIRY

Detailed Description

Description

Organic polymeric housed Zinc oxide arrester for AC transmission and transformation lines is a new type arrester specially designed for reducing the tripping rate of the system caused by lightning fault, and it is parallely connected on two sides of insulator (string) to limit the lightning over-voltage and improve lightning proof level of lines. Main installation mode is suspension type (suspend on the power transmission tower), also stake type installation is available.

The polymeric housed metal-oxide arresters (suspension type, stake type) for lines produced by our company are mainly applied to power transmission and transformation systems of AC 10~ 220kV, used to limit various over-voltage situations that may arise in power transmission and transformation circuits,guaranteeing safety running of power transmission and transformation lines.

Executive standards for production of the products are GB11032-2000(eqvIEC60099-4:1991) Metal oxide surge arresters without gaps for a. c.systems, JB/T8952-2005 Polymer-housed metal oxide surge arresters without gaps for a.c. systems, JB/T10497-2005 Polymeric housed metal oxide surge arresters with series gap for a.c. electric power transmission line,JB/T8459-2006Designation for surge arrester products.

Product Feature

It is made by moulding at a time from a model, good sealing performance, special structure, damp-proof and explosion-proof;
Good heat dispersion, strong over-voltage absorption capacity;
Compact volume, light weight, flexible installation,impact-resistant, high tensile strength, will not be damaged during transportation.
It is most suitable for transmission lines which has low lightning proof level and has high lightning tripping rate; hills and mountainous areas where are droughty and rainless; towers of high earthing resistance and cross-river towers of large span; occasions have high operating over-voltage and need to be limit before entering into the transformer substation; seriously polluted areas.

Condition of use

Ambient temperature shall be within-40℃~+40℃;
Altitude shall not exceed 2000m (give clear indications when placing order for plateau areas)

Frequency of power supply is 48Hz~62Hz;
Max wind velocity shall not exceed 35m/s;

5. Areas where the seismic intensity up to and including Ms7;

Swing of Lightning Arresters is permissible, and we should consider the suspension mode and stake mode according to the tower shape.

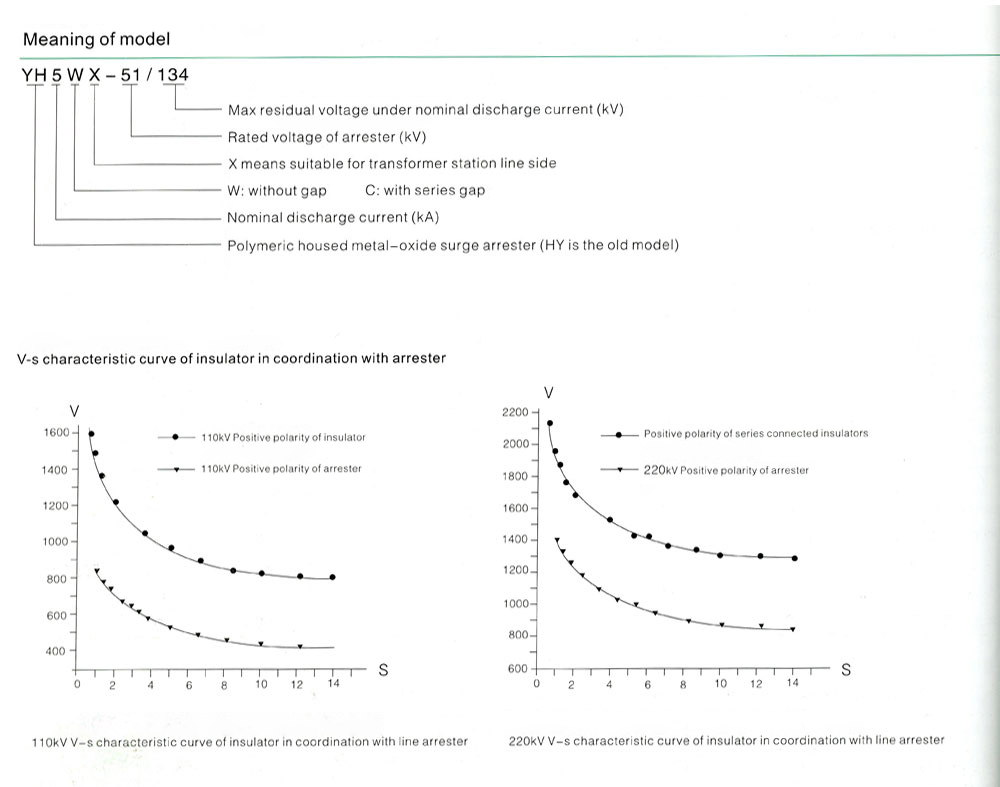

Using selection for AC Transmission Lines Arrester

Arresters for AC transmission and transformation lines can be divided into arresters without gap and arresters with series gap, arresters with series gap also can be divided into fixed gap arresters and air gap arresters, they have respective features in use.

Arresters without gap always take part in line running, it works when there is lightning strike on the line, it also will absorb various over-voltage energy on the line in normal state, but when the arrester has fault and is failed to work normally, it makes the bus grounded, shall cut off the power supply and remove it by manual. We have developed the series disconnector system for the arresters without gap, when the arrester fails, disconnector would work automatically and let the arrester disconnect from the bus, it is convenient for customer to use and maintain.

Arresters with series gap will not take part in line running, so their service life is prolonged , they discharge electricity when there is lightning strike on the line. Fixed gap arrester has an advantage of stable discharge voltage range, but it will be equal to arrester without gap once the fixed gap is nonserviceable advantage of the air gap arrester is that it will always be disconnected from the system under normal state, the arrester gap will discharge electricit when there is lightning strike on the line, but its gap will swing along with the wind, and the gap discharge voltage range is not stable. Our company has developed the arc-shaped gap to overcome the problem of gap distance changes due to swing to the extent.

Electrical parameter table for circuit gapless type

Model of arrester	Rated voltage of system	Rated voltage of arrester	Continuous operating voltage	Direct -current reference voltage	Residual voltage under steep impulse current	Lightning impulse Residual voltage under current	Residual voltage under switching impulse current	Square-wave discharge capacify	Heavy current impulse withstand capacity	Drawing No.
Model of arrester	KV(r.m.s)			≮KV	≯KV			A	kA	Drawing No.

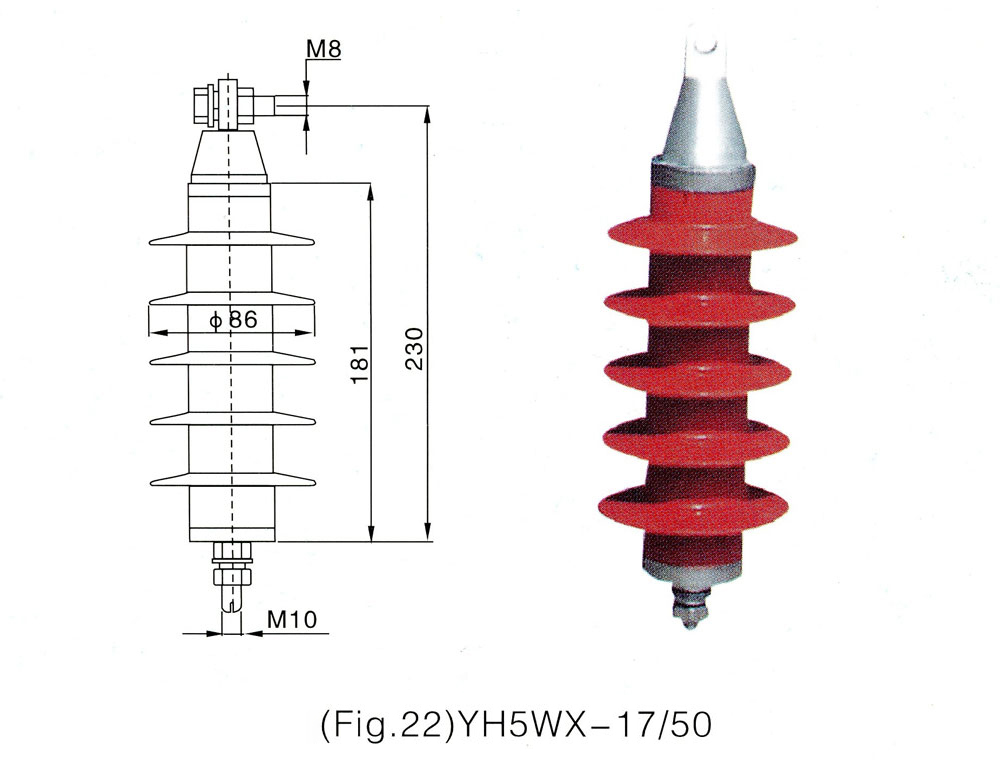

YH5WX-17/50	10	17	13.6	25.0	57.5	50	42.5	150	65	Fig.22
YH5WX-51/134	35	51	40.8	73.0	154	134	114	400	100	Fig.23
YH5WX-54/134	35	54	43.2	77.0	154	134	114	400	100	Fig.23
YH5WX-96/250	66	96	75	140	279	250	202	400	100	Fig.27
YH5WX-96/250	66	96	75	140	279	250	202	400	100	Fig.27
YH10WX-100/260	110	100	78	145	291	260	211	600	100	Fig.27
YH10WX-102/265	110	102	79.6	148	297	265	225	600	100
YH10WX-108/281	110	108	84	157	314	281	239	600	100
YH10WX-114/300	110	114	89	165	336	300	255	600	100
YH10WX-120/320	110	120	94	174	358	320	272	600	100
YH10WX-126/328	110	126	98	183	367	328	279	600	100
YH10WX-204/530	220	204	159	297	594	530	450	600	100	Fig.30
YH10WX-216/562	220	216	168.5	314	628	562	478	600	100
YH10WX-228/600	220	228	178	331	627	600	510	600	100
YH10WX-240/640	220	240	187	349	716	640	544	600	100
YH10WX-252/656	220	252	196	366	734	656	558	600	100

Electric parameter table of line type arrester (with series gaps)

Model of arrester	Rated voltage of system	Residual voltage under lightning impulse currentr	Impulse sparkover voltage	Power frequency withstand voltage	Direct-current reference voltage	Series gap distance	2ms Square-wave discharge capacity	Drawing No.
Model of arrester	KV(r.m.s)	≯KV	≯KV	≯KV	≯KV	mm	A	Drawing No.
YH5CX-42/120	35	120	240	70	60	200±15	250	Fig.31
YH5CX-51/134	35	134	249	70	73	200±15	250	Fig.31
YH5CX-69/198	66	198	440	140	100	350±15	400	Fig.33
YH10CX-84/240	110	240	525	147	132	485±15	400	Fig.33
YH10CX-96/260	110	260	560	185	140	485±15	600
YH10CX-100/260	110	260	560	185	145	605±30	600	Fig.33
YH10CX-108/281	110	281	560	185	160	605±30	600
YH10CX-168/480	220	480	960	370	249	850±50	600
YH10CX-192/520	220	520	960	370	280	850±50	600	Fig.34
YH10CX-216/562	220	562	960	370	320	850±50	600	Fig.34

Description: Suspension type arresters up to and including 35kV usually adopt suspension mode of single-ear or single-hole hanging board,suspension type arresters of 66kV above usually use ball end-ball end (socket) suspension mode, if you need other suspension connecting mode, please give clear indications when placing an order. Our company will assist users to design various flexible suspension modes.
