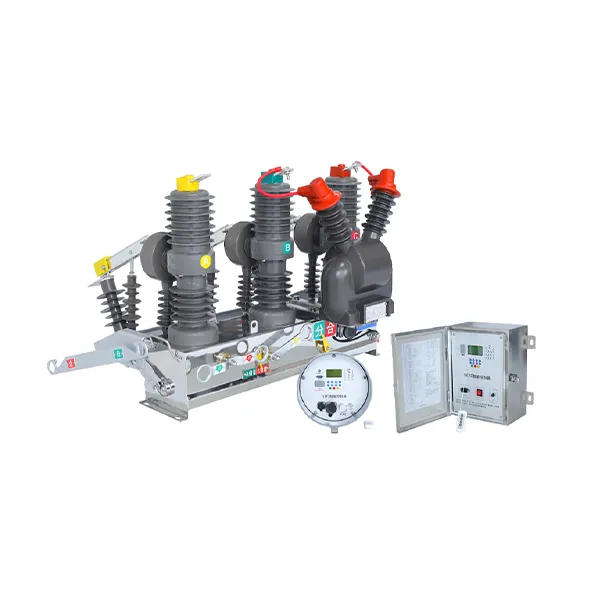

ZW32-12FG Outdoor High Voltage Vacuum Circuit Breaker / Intelligent Type

Overview

ZW32-12FG series outdoor high-voltage vacuum circuit breaker (hereinafter referred to as "circuit breaker") is an outdoor power distribution switchgear with a rated voltage of 12kV and three-phase AC 50Hz. The circuit breaker is mainly used to open and close the load current, overload current and short-circuit current in the power line. It has overload and short-circuit protection functions, meets the control and measurement requirements, and can also realize remote control and monitoring functions. It is widely used in substations and industrial and mining enterprises for control and operation in power distribution systems, especially suitable for places that require frequent operation.

The circuit breaker complies with technical standards such as GB1984-2003, DL/T 402-2007 and IEC60056.

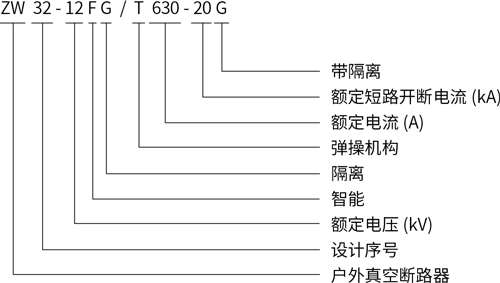

Model meaning

Normal use conditions

◆ The surrounding air may be polluted by dust, smoke, corrosive gas, steam or salt mist, and the pollution level is level III;

◆ The wind speed does not exceed 34m/s (equivalent to 700Pa on the surface of the cylinder);

◆ Use conditions: The circuit breaker can be used under normal use conditions different from those specified above. Please consult with us for requirements.

Technical Parameters
