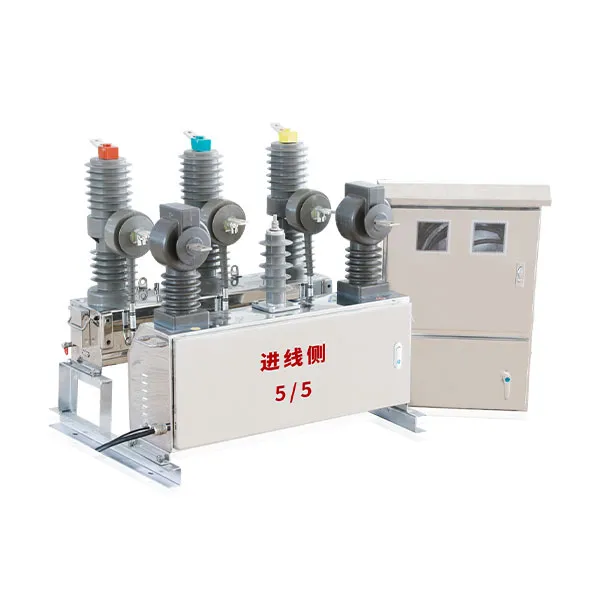

ZW32-12FG Prepayment Metering Combination Switch

ZW32-12FG type power load control metering box (hereinafter referred to as metering box) is mainly used for power users and substations with rated voltage of 10kV, rated frequency of 50Hz, capacity of 5000kVA and below, and plays the role of load control and high-voltage electric energy metering. In conjunction with load control terminals or other controllers, it can realize load control, high-voltage metering, high-voltage prepayment, overload current protection, anti-theft and other functions.

Price：

￥0.00
Category：

Outdoor High Voltage Vacuum Circuit Breaker
Browse number：

27
Release time：

2024-09-21 14:25:59
Quantity： - +
Share：

INQUIRY

Detailed Description

Product Overview

ZW32-12FG prepaid metering combination switch (hereinafter referred to as metering box) is mainly used for power users and substations with rated voltage of 10kV, rated frequency of 50Hz, and capacity of 5000kVA and below, and plays the role of load control and high-voltage power metering. It can realize load control, high-voltage metering, high-voltage prepayment, overload current protection, anti-theft and other functions in conjunction with load control Terminals or other controllers.

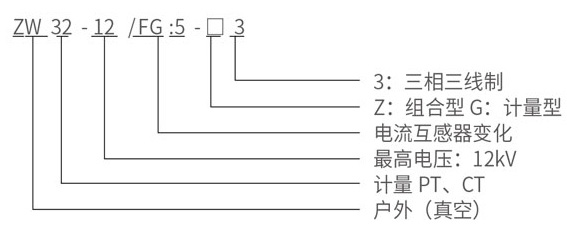

Model meaning

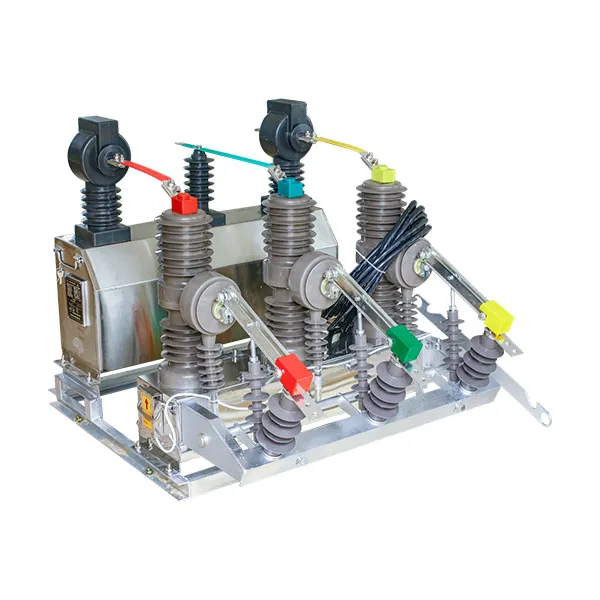

The ZW32-12/口-23 prepaid metering combination switch (control) metering box body consists of a vacuum circuit breaker, a metering voltage transformer, and a metering Current Transformer. Both the voltage transformer and the current transformer adopt a fully enclosed epoxy resin casting structure with excellent insulation performance.

Implementation standards

Products meet the following standards:

GB 17201-2007 "Combined transformer"

GB 1984-2003 "AC high-voltage circuit breaker"

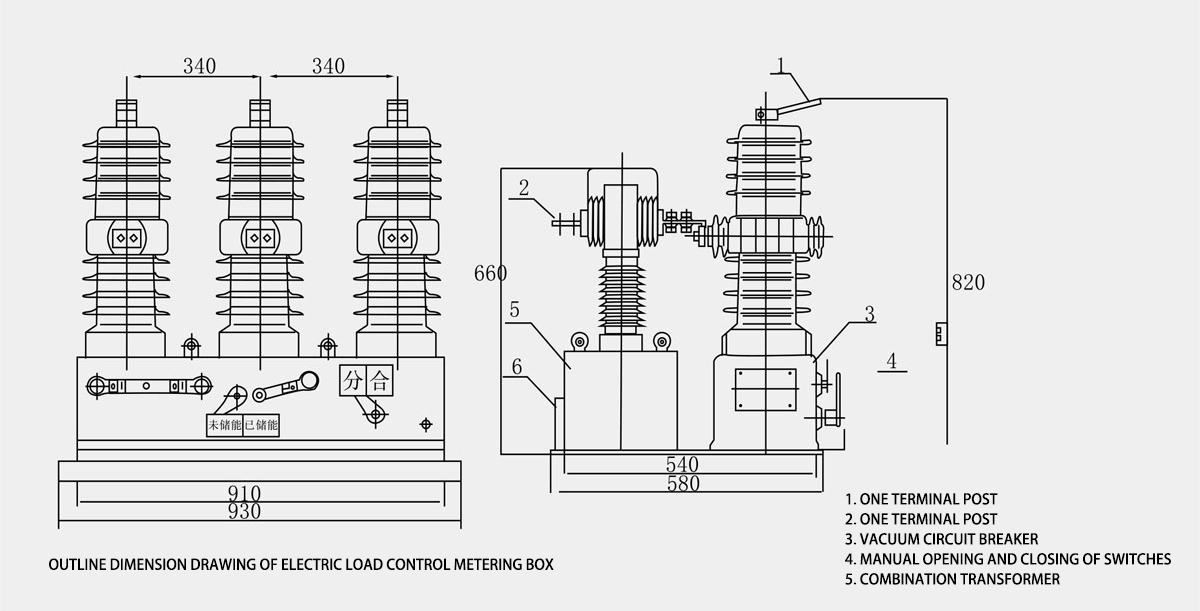

Appearance and installation dimensions
