10kV Single Core Outdoor Terminal

Price：

￥0.00
Category：

Cold Shrink Cable Accessories
Browse number：

20
Release time：

2024-10-21 00:48:31
Quantity： - +
Share：

INQUIRY

Detailed Description

10kV Three Core Indoor Terminal

product name	model	Applicable conductor cross-sectional area（mm2）
10KV single core cold shrink indoor terminal	NLS-10/1.1	25-50
	NLS-10/1.2	70-120
	NLS-10/1.3	150-240
	NLS-10/1.4	300-400
10KV single core cold shrink outdoor terminal	WLS-10/1.1	25-50
	WLS-10/1.2	70-120
	WLS-10/1.3	150-240
	WLS-10/1.4	300-400
10KV three core cold shrink indoor terminal	NLS-10/3.1	25-50
	NLS-10/3.2	70-120
	NLS-10/3.3	150-240
	NLS-10/3.4	300-400
10KV three core cold shrink outdoor terminal	WLS-10/3.1	25-50
	WLS-10/3.2	70-120
	WLS-10/3.3	150-240
	WLS-10/3.4	300-400

Scope of application

Suitable for the connection of single core three core power cables with voltage levels of 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, and 8.7/15KV, serving the functions of sealing, insulation, and stress dissipation. Especially suitable for use in flammable and explosive places such as oil and mining.

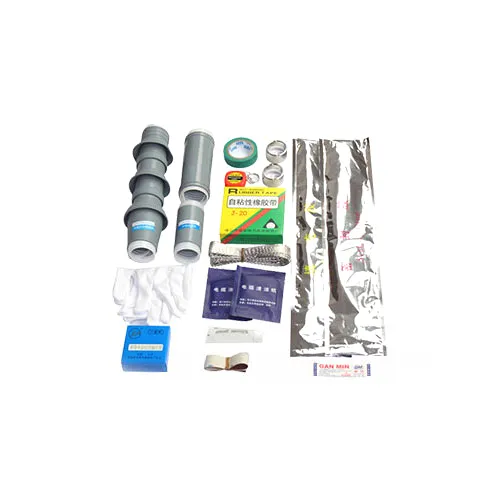

Details of accessories for Cold shrink cable accessories

Cold shrink terminal	Semi conductive tape	Silicone grease paste	Cleaning paper	paper card
Protective casing	underfill	PVC	Band-aid	Installation process
sealed tube	Weaving ground wire	Color Circle	J-20	certificate of conformity
constant force spring	tape measure	Construction gloves	ribbon	Insulating tube

Cold shrink cable accessories (power cable accessories) Product details:

1. The complete set of products adopts full cold shrinkage technology, without the need for hot work or tools. During installation, you can simply pull out the wire core, and the elastic body will quickly shrink and tightly adhere to the required installation site.

2. Reliable silicone rubber with excellent insulation and high elasticity. After installation, it always maintains appropriate radial pressure on the cable body, making the inner interface tightly bonded and preventing electrical breakdown due to the breathing effect during cable operation. The stress control part is integrated with the main insulation, effectively solving the problem of electrical stress concentration at the outer shielding surface of the cable, ensuring reliable insulation and safe operation.

3. Products that are easy to intall have been manufactured and formed in the factory. No special training is required, the installation and operation are simple, and there is no need for fire, saving time and effort. The fully cold shrink automatic reset technology makes installation easy without sweating, greatly reducing quality accidents caused by improper operation, and solving the problem of prefabricated cable accessories not contracting tightly or not fitting in.

4. Widely used for pollution prevention,aging resistance, good hydrophobicity, and excellent cold and heat resistance, especially suitable for high-altitude areas, cold areas, humid areas, salt spray areas, and heavily polluted areas. And no open flames are used during installation, especially suitable for flammable and explosive places such as petroleum, chemical, mining, tunnels, etc.

5. The equipment has excellent quality, high degree of automation, and reliable performance.

6. With extended cold shrink tubing and no seam lines, it has a beautiful appearance.
