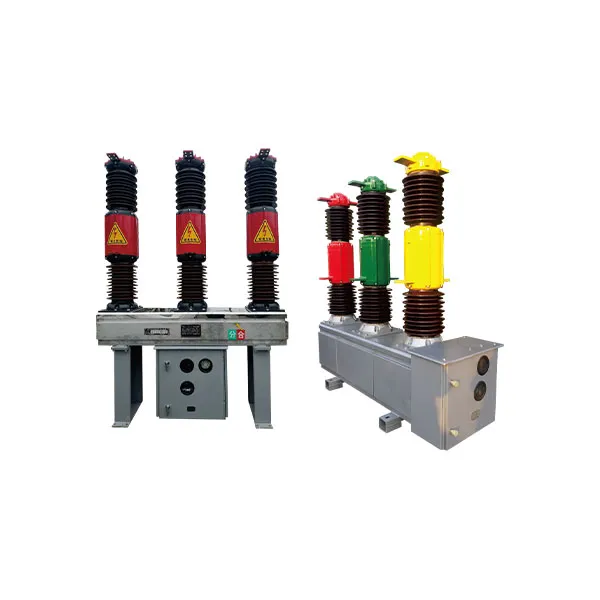

LW16-40.5 Outdoor Sulfur Hexafluoride Circuit Breaker

LW16-40.5 outdoor sulfur hexafluoride circuit breaker is an outdoor device used in AC 50Hz three-phase power system for control and protection of industrial and mining enterprises, power plants and substations. This product can be operated frequently and can be used as a connecting circuit breaker and a circuit breaker for capacitor banks and reactor groups.

Price：

￥0.00
Category：

Outdoor High Voltage Vacuum Circuit Breaker
Browse number：

26
Release time：

2024-09-21 23:41:23
Quantity： - +
Share：

INQUIRY

Detailed Description

Overview

LW16-40.5 outdoor sulfur hexafluoride circuit breaker is an outdoor device used in AC 50Hz three-phase power systems for control and protection of industrial and mining enterprises, power plants and substations. This product can be operated frequently and can be used as a connecting circuit breaker and a circuit breaker for connecting capacitor banks and reactor groups. The built-in Current Transformer can be used for measurement and protection. It can directly replace the SW2-35 low-oil circuit breaker. It can replace various types of high-oil Circuit breakers with overcurrent brackets. It is an ideal oil-free circuit breaker in 35kV power systems.

Note: When the circuit breaker is in hot standby mode, a Lightning Arrester must be installed on the road side of the break.

Working conditions and use environment

1. Altitude: not more than 3000m;

2. Ambient temperature: -25℃~+40℃;

3. Wind speed: not more than 34m/s;

4. Pollution level IV, creepage distance of porcelain sleeve: > 1255mm;

5. Places without flammable substances, explosion hazards, chemical corrosion and severe vibration.

Note: If the above requirements are exceeded, the user can negotiate with the manufacturer.

Technical Parameters

NO.	Items name		Unit	Data
1	rated voltage		kV	40.5
2	rated insulation level	1-minute power frequency withstand voltage	kV	95
2	rated insulation level	Lightning impulse withstand voltage	kV	185
3	Rated frequency		Hz	50
4	Rated current		A	1600, 2000
5	Rated short-circuit breaking current		kA	25 (reclosing), 31.5 (single-break)
6	Rated short-circuit making current (peak value)		kA	63
7	Rated short-time withstand current		kA	25
8	Rated short-circuit duration		S	4
9	Rated peak withstand current		kA	63
10	Rated operation sequence			O-0.3s-CO-180s-CO
11	Rated breaking current of single capacitor bank		A	400
12	Rated out-of-step breaking current		KA	6.3
13	Rated out-of-phase breaking current		kA	21.75
14	Mechanical life test		times	3000
15	Accumulated breaking times of rated current		times	2000
16	Rated short-circuit breaking current (25kA) cumulative breaking times		times	21
17	Opening time	Under rated or maximum operating voltage	s	≤0.06
17	Opening time	At the minimum operating voltage	s	≤0.10
18	Closing time		s	≤0.15
19	Rated pressure of SF6 gas (gauge pressure at 20℃)		MPa	0.60±0.015
20	SF6 gas replenishment alarm pressure (gauge pressure at 20℃)		MPa	0.55 ±0.015
21	Minimum functional pressure of SF6 gas (gauge pressure at 20℃)		Mpa	0.S2±0.01S
22	annual leakage rate of SF6 gas		%/year	≤1
23	SF6 gas trace moisture content		V/V	≤150X10^-6
24	CT14 A mechanism division rated voltage of closing coil	AC	V	220
24	CT14 A mechanism division rated voltage of closing coil	DC	V	110, 220
25	CT14-A mechanism energy storage Rated voltage of electric motor	AC	V	220, 380
25		DC	V	110, 220
26	Weight of SF6 gas		kg	Normal: 2.5, with CT: 6, extra high with CT: 8
27	weight of circuit breaker		kg	1000
28	External insulation leakage ratio of circuit breaker		mm/kV	≥31
29	Porcelain bushing leakage distance		mm	≥1255

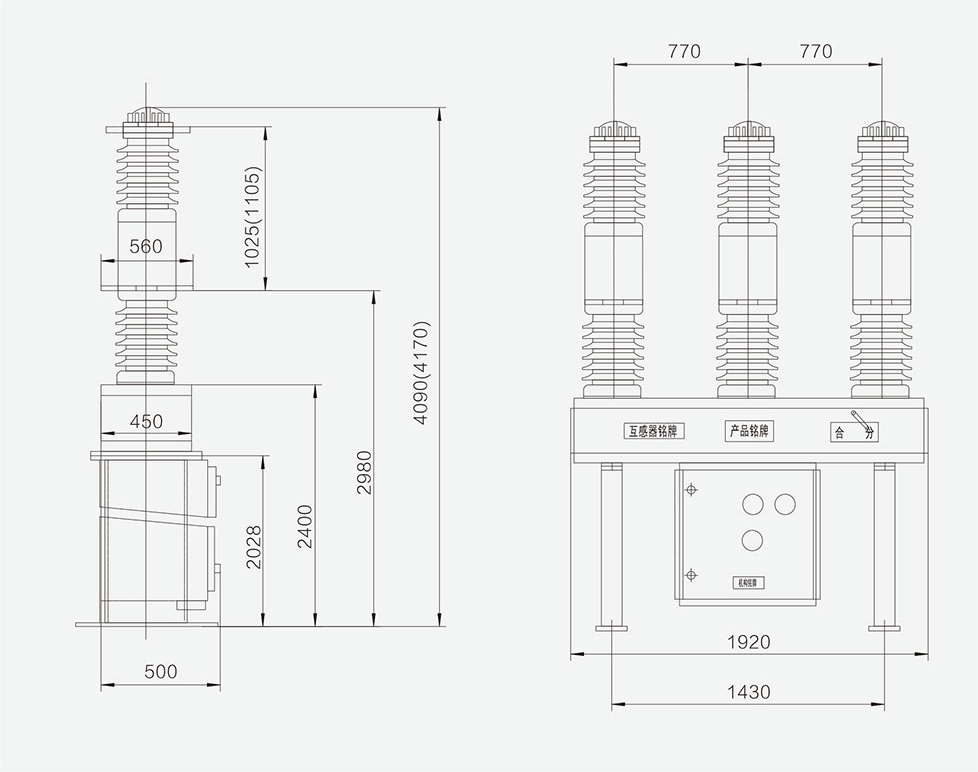

Technical Parameters

NO.	Items name	Unit	Data
1	Conductive rod stroke	mm	65±2
2	Dimension A from the upper end of the conductive rod at the closing position to the upper end of the porcelain bottle flange	mm	233
3	Minimum air insulation distance	mm	four hundred and forty
4	three-pole opening synchronism	ms	≤2
5	main circuit resistance	A	Normal ≤ 40 with CT ≤ 60
6	Initial sub-speed (under rated voltage)	m/s	2.4±0.2
7	Closing speed (under rated voltage)	m/s	≥2
