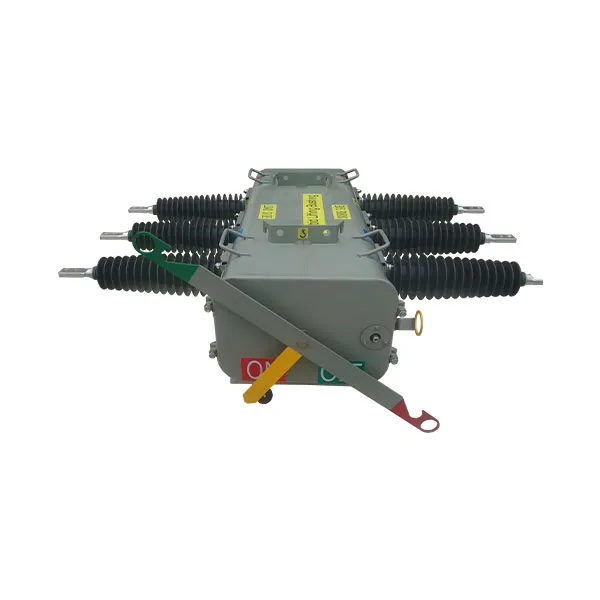

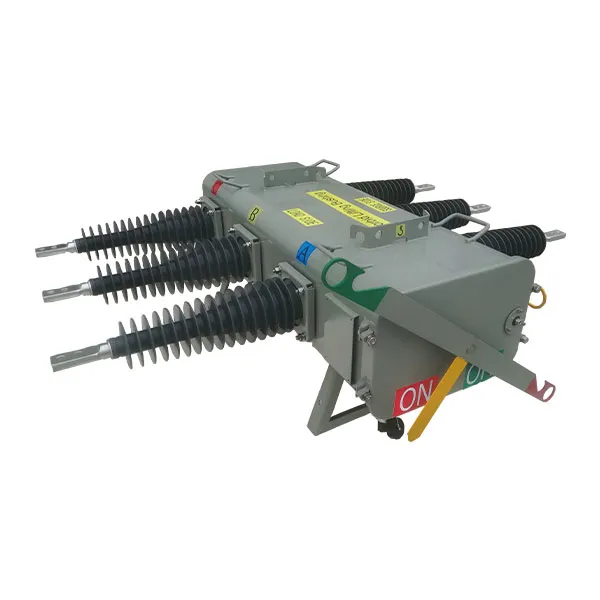

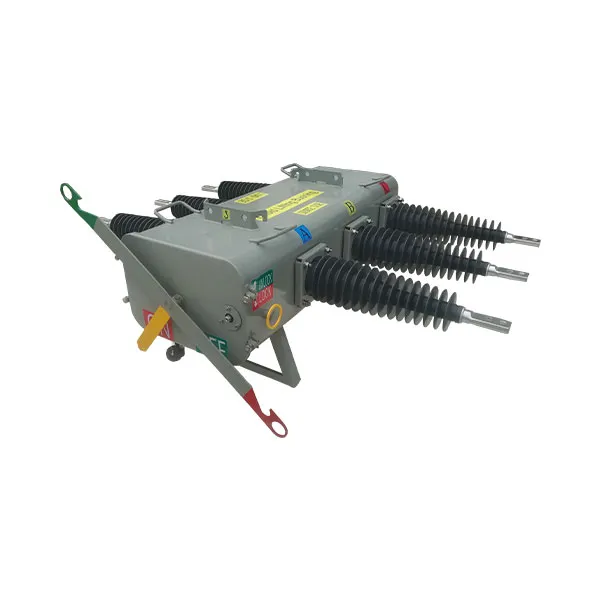

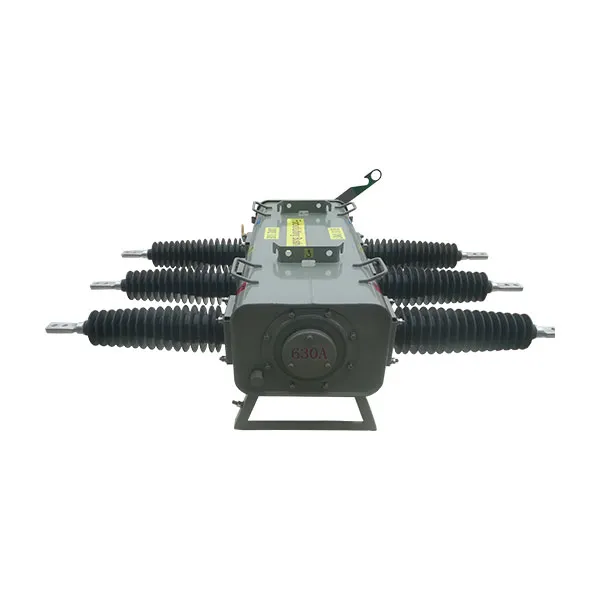

Description
Environment conditions
-Ambient temperature: max.+50°C min.-40°C
- Altitude: not mare than 1000m(could also be 2000m, 3500m, 5000m as requested)
- Wind pressure: not mare than 700Pa(equals to wind speed 34m/s)
-Relative humidity:not more than100%
-Air contamination degree: Class IV
-Earthquake intensity: ≤8 degree
- Not bepolluted by corrosive or flammable gas
- No frequent violent vibrationor explosive place
Technical Data
| Model | GFLW-12 | GFLW-24 | GFLW-40.5 |
| Ratedvoltage | 12KV | 24kV | 40.5kV |
| Rated current | 630A | 630A | 630A |
| Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Short time withstand current | 20kA/1sec | 20kA/1sec | 20kA/1sec |
| Making and Breaking Capacity | |||
| Main Active Load Current | 630A | 630A | 630A |
| Number of Load-break Operations | 400 Times | 400 Times | 400 Times |
| Short-timeMaking Current (peak) | 50kA | 50kA | 50kA |
| Numberof MakingCurrentOperations | 5 Times | 5 Times | 5 Times |
| Cable Charging Current | 25A | 25A | 25A |
| Line Charging Current | 1.5A | 1.5A | 1.5A |
| Closed Loop Circuit Current | 630A | 630A | 630A |
| Transformer Magnetizing Current | 22A | 22A | 22A |
| Power Frequency Withstand VoltageTest | |||
| Wet Condition-10secPhase toPhase, Phase to Earth, Across Interrupters | 45kV | 50kV | 70kV |
| DryCondition-1minPhase toPhase,Phase to Earth | 50kV | 64kV | 95kV |
| Dry Condition - 1 min AcrossInterrupters | 50kV | 79kV | 110kV |
| Impulse Withstand VoltageTest(1.2 x 50 μs) | |||
| Phase to Earth | 85kV | 125kV | 195kV |
| Across Interrupter | 95kV | 145kV | 215kV |
| Other Ratings & Specifications | |||
| Internal Arc Test | 20kA /0.1 sec | 20kA /0.1 sec | 20kA /0.1 sec |
| Arc Extinction Medium | SF 6 Gas | SF 6 Gas | SF 6 Gas |
| Insulation Medium | SF 6 Gas | SF 6 Gas | SF 6 Gas |
| Creepage Distance (PorcelainBushing) | 380mm | 700mm | 1055mm |
| Creepage Distance (Silicone Rubber Bushing) | 540mm | 700mm | mm |
| IP Level | 65 | 65 | 65 |
| Mechanical Performance | |||
| Closing/Opening Time | ＜1sec | ＜1sec | ＜1sec |
| Mechanical Operations (Guaranteed) | 10000 Times | 10000 Times | 10000 Times |
| Operating Temperature (Manual Type) | -25～+70℃ | -25～+70℃ | -25～+70℃ |
| Gas Pressure | |||
| Nominal Pressure (MPa, at 20°C) | 0.07 | 0.07 | 0.07 |
| ExplosionPressure (MPa) | 0.4～0.6 | 0.4～0.6 | 0.4～0.6 |
| Minimum Gas Pressure (MPa) | 0.05 | 0.05 | 0.05 |
| Gas Leakage Rate (cc/ sec) | ≤0.5% | ≤0.5% | ≤0.5% |

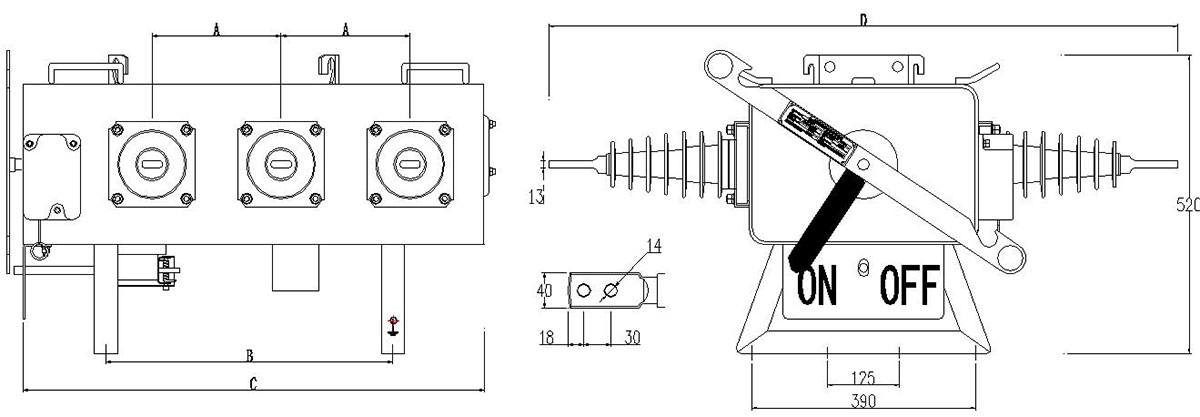

Outline Dimension
| Dimension (mm) | Mounting Size (mm) | Bushing creepage Distance (mm) | Packing Size (mm) | Weight (KGS) | ||||
| A | B | C | D | L×W | L×W×H | |||
| 12KV | 225 | 500 | 803 | 1056 | 500 × 125 (390) | 500 × 125 (390) | 1100 × 900 × 700 | 105 |
| 24KV | 300 | 650 | 953 | 1250 | 500 × 125 (390) | 500 × 125 (390) | 1300 × 1100 × 700 | 145 |
| 40.5KV | 400 | 850 | 1153 | 1380 | 700 × 125 (390) | 700 × 125 (390) | 1400 × 1200 × 700 | 165 |
