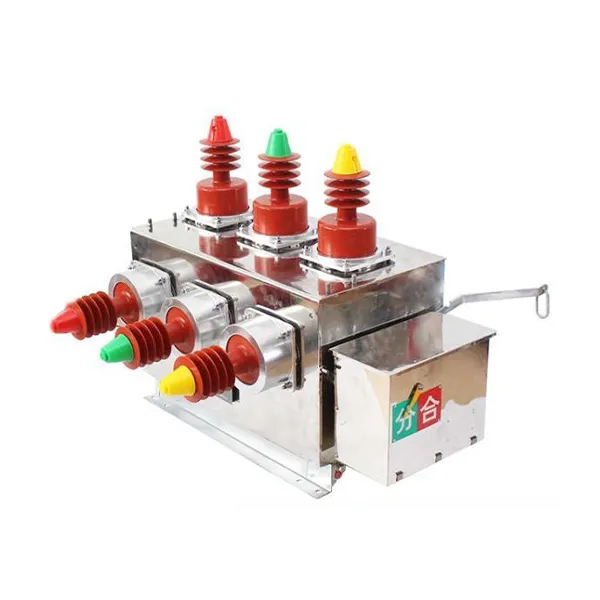

ZW10(27)-12 Outdoor High Voltage AC Vacuum Circuit Breaker

ZW10(27)-12 outdoor high voltage AC vacuum circuit breaker is a three-phase outdoor high voltage AC switchgear, mainly used in power distribution systems of rural power grids, urban power grids, mines, railways and ports with a voltage level of 12kV and a rated frequency of 50Hz. It is particularly suitable for outdoor overhead lines to separate and connect load current, overload current and short-circuit current, and to switch and protect the power grid.

Price：

￥0.00
Category：

Outdoor High Voltage Vacuum Circuit Breaker
Browse number：

34
Release time：

2024-09-23 02:00:48
Quantity： - +
Share：

INQUIRY

Detailed Description

Overview

ZW10(27)-12 outdoor high-voltage AC vacuum circuit breaker is a three-phase AC outdoor High-voltage Switchgear, mainly used in power distribution systems of rural power grids, urban power grids, mines, railways, and ports with a voltage level of 12kV and a rated frequency of 50Hz. It is particularly suitable for outdoor overhead lines to switch and protect the power grid by separating and combining load current, overload current, and short-circuit current.

Normal use conditions

◆ Ambient temperature from -40°C to +40°C;

◆ Altitude not exceeding 2000m, negotiate with the user for altitude above 2000m;

◆ Wind pressure not exceeding 700Pa (equivalent to wind speed 34m/s);

◆ Daily average relative temperature not exceeding 95%, monthly average not exceeding 90%;

◆ Air pollution level I;

◆ The surrounding air should not be obviously polluted by corrosive gases or flammable gases;

◆ No frequent severe vibration.

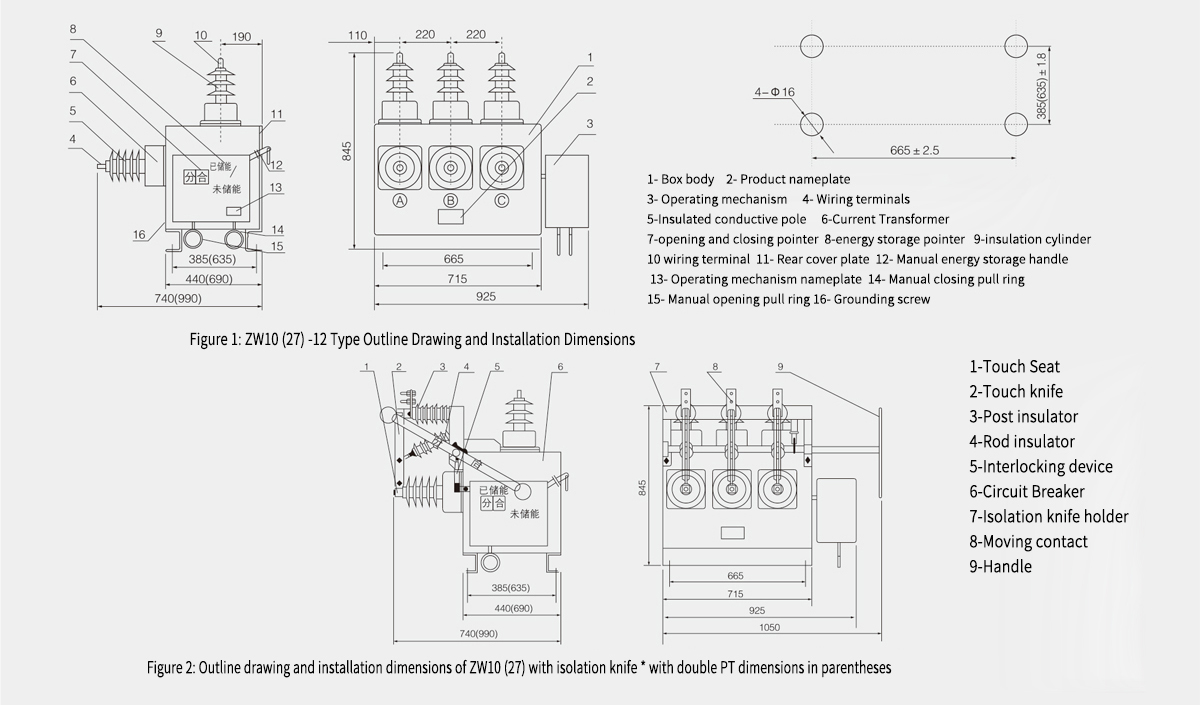

Technical Parameters

Number	Items		Unit	Data
1	rated voltage		kV	12
2	Rated current		A	630、1000、1250
3	Rated frequency		Hz	50
4	1min frequency withstand voltage (isolated port)		kV	42/48
5	Lightning impulse voltage (peak)		kV	75
6	Rated short-circuit breaking current		kA	16	20
7	Rated short-circuit closing power (peak)		kA	40	50
8	Rated short-time withstand current		kA	16	20
9	Rated peak withstand current		kA	40	50
10	Rated operation sequence			O-0.3s-CO-180s-CO
11	Rated short-circuit breaking current		times	30
12	Mechanical life		times	10000
13	Allowable contact wear cumulative thickness		mm	3
14	Rated operating voltage with CT23 Breaking coil Spring actuator Closing coil		V	DC or AC 220
15	Rated operating current of overcurrent tripping coil		A	5
16	Current Transformer primary and secondary current ratio (conventional)			200/5,400/5,630/5,1000/5,1250/5
17	Energy storage motor	Rated Voltage	V	DC or AC 220
18		Power	W	≤70
19	weight		kg	150
